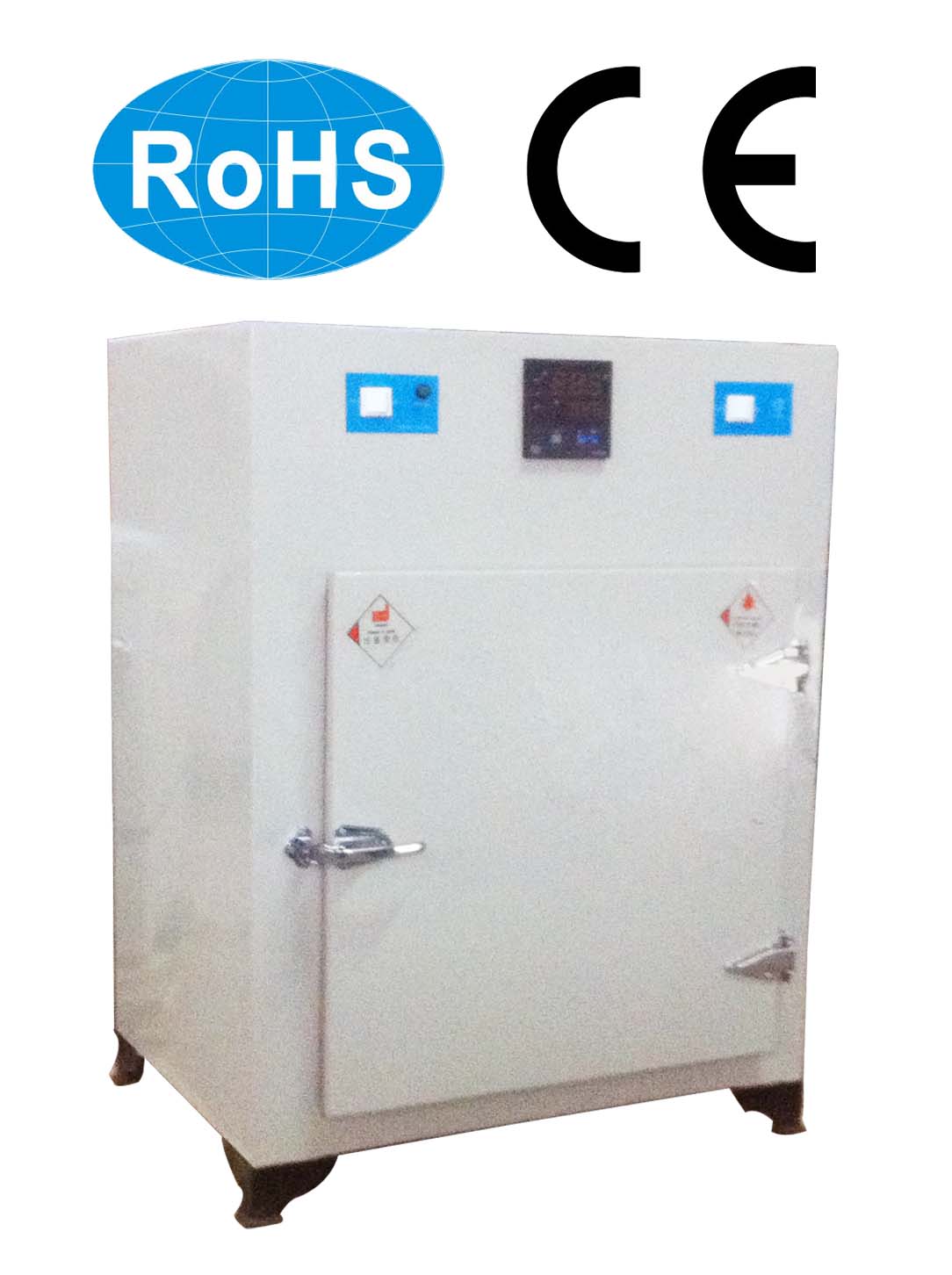

Product Name:Anti-explosion Dry Oven
Product Model:FB Series
Product Details:
Anti-explosion Dry Oven is applicable for drying,curing,wax melting,sterilization,heat treatment in industrial and mining enterprises, medical college and R&D institution.
Product Feature:

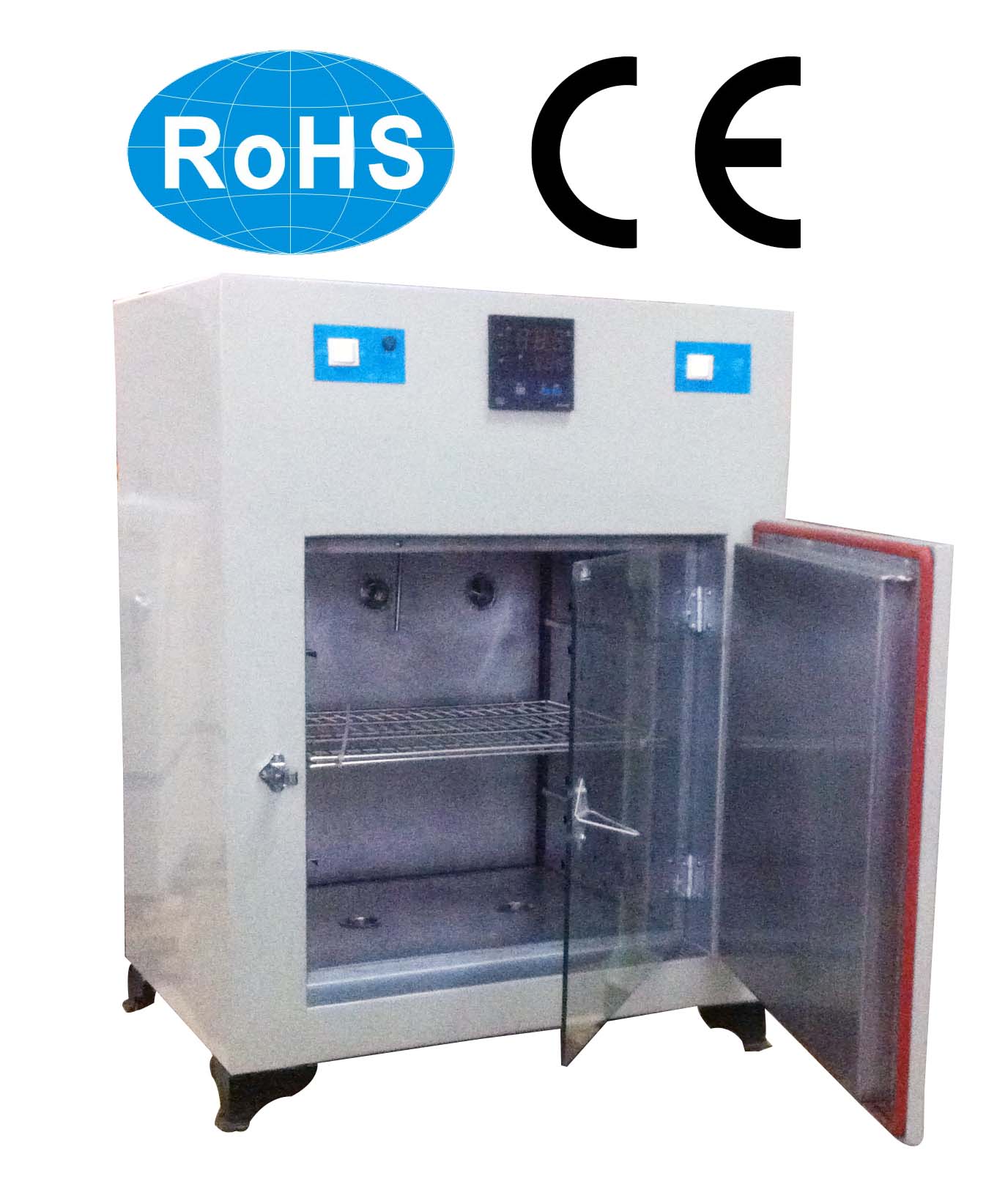

The inner container is made of high-quality steel plate or stainless steel,it can be chosen arbitrarily.
Intelligent temperature controller PID which has self-tuning,temperature deviation corrections,overtemperature alarm,timing functions,Or it can preinstall temperature curve control,8 segments control the temperature, it can be chosen arbitrarily
Strong wind convection,which can speed up the steam discharge in inner chamber.
There is one door which located at the back of the chamber.,it will automatically flick when the inside air heating generate certain pressure.
Technical Parameters:
|
Name |
Model |
Inner size(mm)
W*H*D |
Power
（KW） |
Specifications |
|
Anti-explosion Dry Oven（Air blast circulation） |
FB71L-IAC |
450×450×350 |
3 |
★Rated temperature：300℃
★Voltage：
71L：220V
136L：220V
225L：220V
640L：380V
★Remark：A-Digital display；S-Stainless steel；C-Circulating Ventilation；D-Overtemperature alarm Segment temperature control，10segments add RMB1500，adopts JapanFuji Meter |
|
FB136L-IAC |
550×550×450 |
3 |
|
FB225L-IAC |
750×600×500 |
5 |
|
FB640L-IAC |
1000×800×800 |
7 |
|
Anti-explosion Dry Oven（Air blast circulation inner chamber stainless steel） |
FB71L-IASC |
450×450×350 |
3 |
|
FB136L-IASC |
550×550×450 |
3 |
|
FB225L-IASC |
750×600×500 |
5 |
|
FB640L-IASC |
1000×800×800 |
7 |
|
Anti-explosion Dry Oven（Air blast circulation LCD temperature control） |
FB71L-IIAC |
450×450×350 |
3 |
|
FB136L-IIAC |
550×550×450 |
3 |
|
FB225L-IIAC |
750×600×500 |
5 |
|
FB640L-IIAC |
1000×800×800 |
7 |
|
Anti-explosion Dry Oven（Air blast circulation inner chamber stainless steel LCD temperature control） |
FB71L-IIASC |
450×450×350 |
3 |
|
FB136L-IIASC |
550×550×450 |
3 |
|
FB225L-IIASC |
750×600×500 |
5 |
|
FB640L-IIASC |
1000×800×800 |
7 |
|
