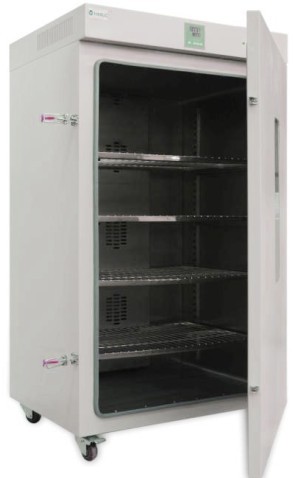

HSGF-9420A Drying Oven【420 liters】

HSGF-9420A Drying Oven【420 liters】
Click to enlarge
Product Type:
HSGF-9420A
Product Name:
HSGF-9420A Drying Oven【420 liters】
Features:
Made in Shanghai, China. Factory outlets. Competitive price. Beautiful, durable products. Good temperature precision and evenne.
  Product Details:

Scope of Application:

Drying oven is applicable for drying, cure, melting and sterilization industrial and mining enterprises, laboratories and scientific research institutes.

Control Feature:

Function of parameters memory and electricity incoming recovery when data lost because of power cut or system halted.

Structure Feature:

Sort: Microcomputer normal type

Performance Feature:

  • Adopts originated domestic streamline arc design, the outer is made of cold rolled steel plate, the surface is static lacquered;
  • Temperature control system adopts microcomputer single chip technology, with the functions of temperature control, timing and over-temperature alarm;
  • Rational air duct and circulatory system make the temperature in chamber symmetrical;
  • Double screens of high light nixie tube display, the value displayed well, predominant performance, set and adjust parameters by touch type buttons;
  • The interior chamber is made of stainless steel material, the design of corners semicircular is easy to clean;
  • User can decide the number of shelves and the height of shelves can be changed optionally;
  • Adopts imported machine and fan blade with air convection device for circulating the air in chamber;
  • Wide angle of view observation glass window. Adopts nano-materials door magnetic seal and heat preservation material.

Technical Parameters:

Model: HSGF-9420A
Type: Microcomputer normal type
Power supply: AC 380V±10%/50Hz±2%
Temp. range: RT+10°C-250°C
Temp. fluctuation: ±0.5°C
Power consumption: 4000W
Volume: 420L
Interior Dimension (mm): 600(W)×550(D)×1300(H)
Overall Dimension (mm): 740(W)×730(D)×1670(H)

Packing Dimension (mm): 880(W)×870(D)×1810(H)
Gross Weight (KGS): 180


Shelves: 3 Pcs
Time range: 0-999min

Drying Oven Accessories:

  • Programmable LCD temperature controller
  • Independent temperature limit controller
  • RS485 interface and communication software
  • Temperature test hole
  • Paperless recorder
